SPECIFICATIONS AND TECHNICAL DATA

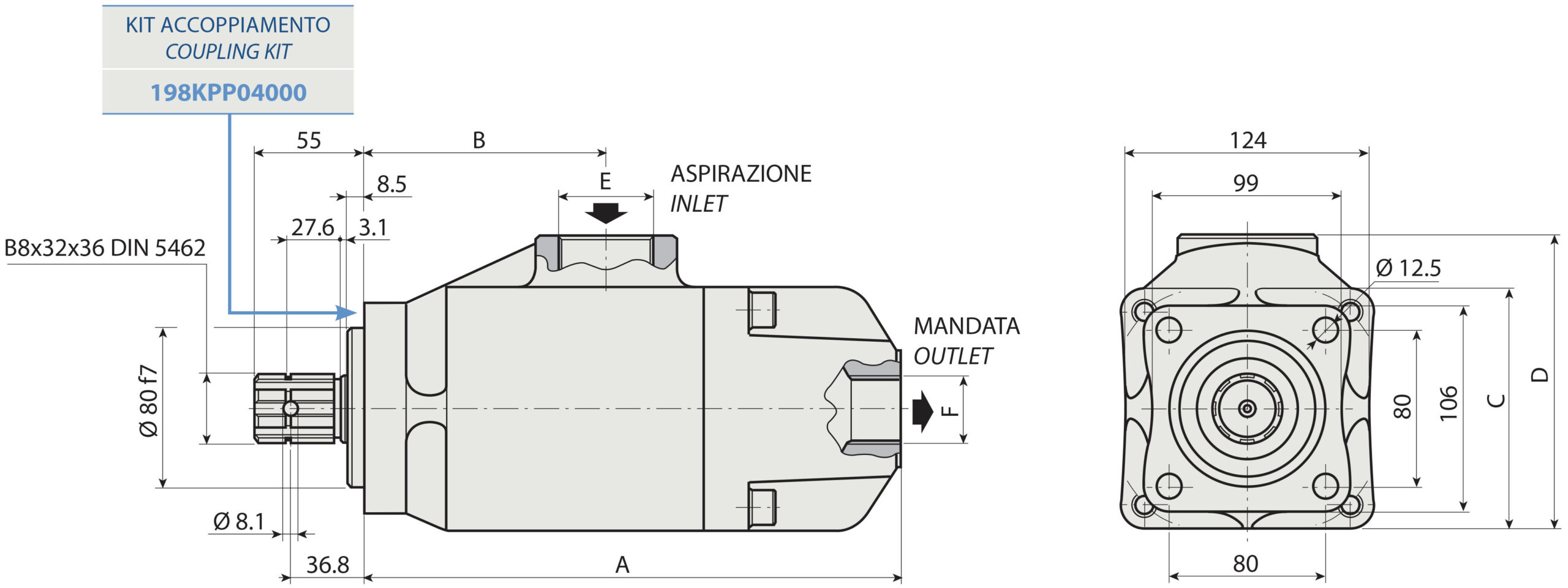

| TYPE | CODE | A | B | C | D | E INLET | F OUTLET | WEIGHT |
| mm | mm | mm | mm | kg | ||||
| PE 70 | 201PE070ZSE | 272 | 122,5 | 124 | 150,5 | 1.01.2002 | 1 | 17,5 |
| PE 80 | 201PE080ZSE | 272 | 122,5 | 124 | 150,5 | 1.01.2002 | 1 | 17,5 |
| PE 90 | 201PE090ZSE | 272 | 122,5 | 124 | 150,5 | 1.01.2002 | 1 | 17,5 |
| PE 100 | 201PE100ZSE | 272 | 122,5 | 124 | 150,5 | 1.01.2002 | 1 | 1735 |
| TYPE |
CODE |
DISPLAC cm3 |
MAX CONTINUOUS OPERATING PRESSURE bar |
MAX INTERMITT. OPERATING PRESSURE (MAX 30S) bar |
MAX PEAK PRESSURE (P<= 0.1S) bar |
MAX INTERMITTENT SPEED (P<=20 BAR) n/min r.p.m. |
MAX CONTINUOUS SPEED (<=P1) n/min r.p.m. |
MIN INTERMITTENT SPEED (<=P2X0.5) (MAX 30S) n/min r.p.m. |
|---|---|---|---|---|---|---|---|---|
| PE 70 | 201PE070ZSE | 70 | 300 | 350 | 400 | 2000 | 1600 | 400 |
| PE 80 | 201PE080ZSE | 80 | 300 | 350 | 400 | 2000 | 1600 | 400 |
| PE 90 | 201PE090ZSE | 90 | 300 | 350 | 400 | 2000 | 1600 | 400 |
| PE 100 | 201PE100ZSE | 100 | 300 | 350 | 400 | 2000 | 1600 | 400 |
