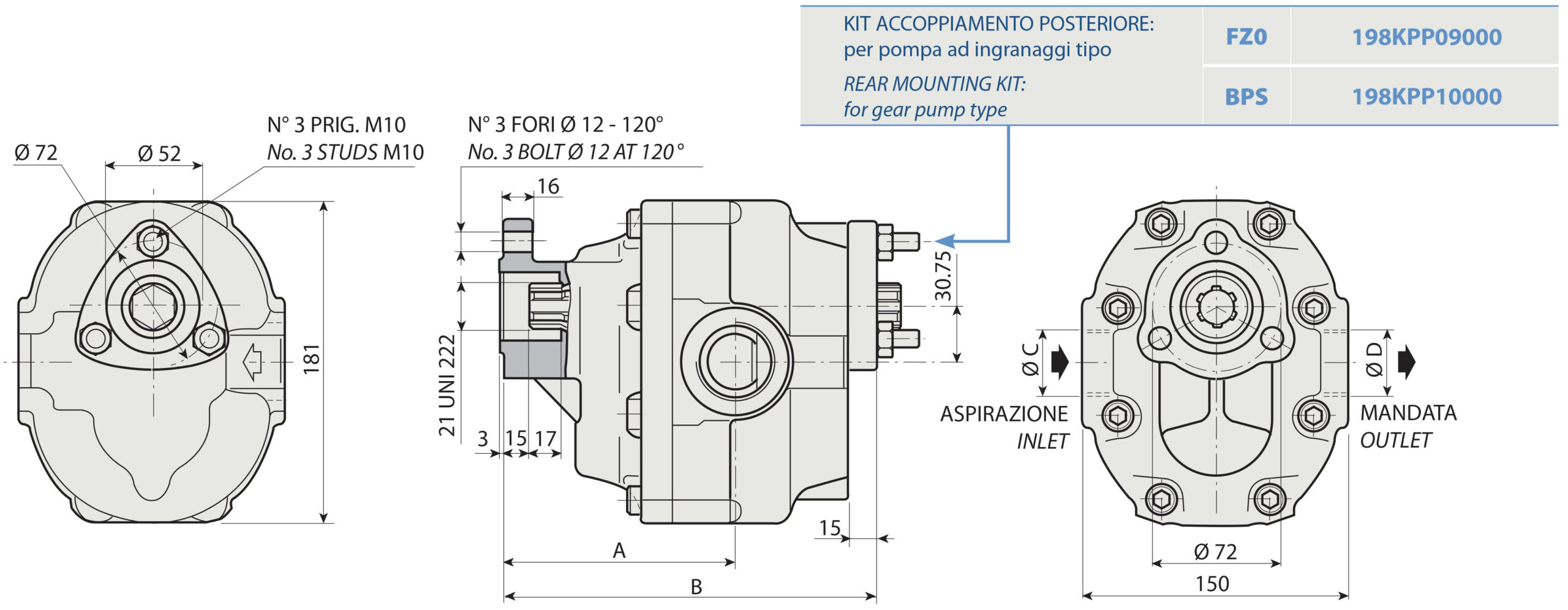

| TYPE | CODE | DISPLACEMENT | A | B | C INLET | D OUTLET | WEIGHT |
| cm3 | mm | mm | kg | ||||
| FZH 75 T | 200FZH075DT | 73 | 127 | 204,5 | 1.01.2004 | 1 | 16,9 |
| 200FZH075ST | |||||||
| FZH 85 T | 200FZH085DT | 84 | 129,5 | 208,5 | 1.01.2004 | 1 | 17,8 |
| 200FZH085ST | |||||||
| FZH 100 T | 200FZH100DT | 100 | 139 | 214,5 | 1.01.2004 | 1 | 18,6 |
| 200FZH100ST | |||||||
| FZH 116 T | 200FZH116DT | 116 | 139 | 220,5 | 1.01.2004 | 1 | 19,6 |
| 200FZH116ST | |||||||
| FZH 130 T | 200FZH130DT | 132 | 135 | 226,5 | 1.01.2002 | 1 | 20,5 |
| 200FZH130ST | |||||||
| FZH 150 T | 200FZH150DT | 148 | 143 | 232,5 | 1.01.2002 | 1 | 21,4 |
| 200FZH150ST | |||||||
| FZH 62 T | 200FZH062DT | 62 | 125 | 197 | 1 | 3.Nis | 16 |
| 200FZH062ST |
| TYPE |
CODE |
DISPLAC cm3 |
MAX CONTINUOUS OPERATING PRESSURE bar |
MAX INTERMITT. OPERATING PRESSURE (MAX 30S) bar |
MAX PEAK PRESSURE (P<= 0.1S) bar |
MAX INTERMITTENT SPEED (P<=20 BAR) n/min r.p.m. |
MAX CONTINUOUS SPEED (<=P1) n/min r.p.m. |
MIN INTERMITTENT SPEED (<=P2X0.5) (MAX 30S) n/min r.p.m. |
||
|---|---|---|---|---|---|---|---|---|---|---|
| FZH 75 T |
|
73 | 300 | 320 | 450 | 3800 | 1800 | 300 | ||
| FZH 85 T |
|
84 | 250 | 280 | 375 | 3500 | 1800 | 300 | ||
| FZH 100 T |
|
100 | 250 | 270 | 375 | 3500 | 1500 | 250 | ||
| FZH 116 T |
|
116 | 240 | 260 | 340 | 3000 | 1500 | 250 | ||
| FZH 130 T |
|
132 | 210 | 210 | 315 | 3000 | 1500 | 250 | ||
| FZH 150 T |
|
148 | 180 | 180 | 270 | 3000 | 1500 | 250 | ||
| FZH 62 T |
|
62 | 300 | 350 | 450 | 3800 | 2000 | 400 |
