SPECIFICATIONS AND TECHNICAL DATA

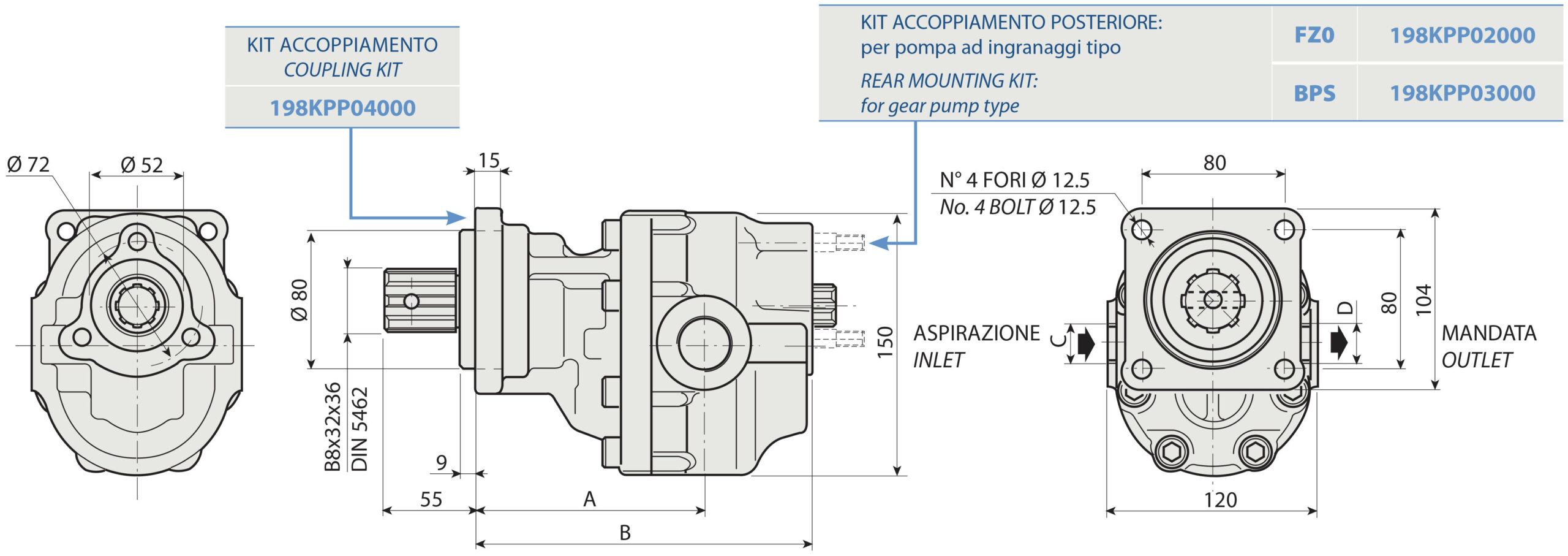

| TYPE | CODE | DISPLACEMENT | A | B | C INLET | D OUTLET | WEIGHT | |
| cm3 | mm | mm | kg | |||||
| FZ0 36 V | 200FZ0036DV | 36 | 126 | 186,5 | 3.Nis | 1.Şub | 12,2 | |
| 200FZ0036SV | ||||||||
| FZ0 43 V | 200FZ0043DV | 43 | 131 | 191,5 | 1 | 3.Nis | 12,6 | |
| 200FZ0043SV | ||||||||
| FZ0 57 V | 200FZ0057DV | 57 | 138 | 201,5 | 1 | 3.Nis | 13,4 | |
| 200FZ0057SV | ||||||||
| FZ0 65 V | 200FZ0065DV | 65 | 143 | 206,5 | 1 | 3.Nis | 13,9 | |
| 200FZ0065SV | ||||||||
| FZ0 90 V | 200FZ0090DV | 84 | 152,5 | 221,5 | 1.01.2004 | 1 | 14,9 | |
| 200FZ0090SV | ||||||||
| FZ0 110 V | 200FZ0110DV | 105 | 164,5 | 233,5 | 1.01.2004 | 1 | 16,4 | |
| 200FZ0110SV | ||||||||
| FZ0 22 V | 200FZ0022DV | 22 | 126 | 176,5 | 3.Nis | 1.Şub | 11,1 | |
| 200FZ0022SV | ||||||||
| FZ0 27 V | 200FZ0027DV | 27 | 125 | 180 | 3.Nis | 1.Şub | 11,5 | |
| 200FZ0027SV |
| TYPE |
CODE |
DISPLAC cm3 |
MAX CONTINUOUS OPERATING PRESSURE bar |
MAX INTERMITT. OPERATING PRESSURE (MAX 30S) bar |
MAX PEAK PRESSURE (P<= 0.1S) bar |
MAX INTERMITTENT SPEED (P<=20 BAR) n/min r.p.m. |
MAX CONTINUOUS SPEED (<=P1) n/min r.p.m. |
MIN INTERMITTENT SPEED (<=P2X0.5) (MAX 30S) n/min r.p.m. |
|---|---|---|---|---|---|---|---|---|
| FZ0 36 V | 200FZ0036DV | 36 | 300 | 325 | 450 | 3500 | 2200 | 350 |
| FZ0 43 V | 200FZ0043DV | 43 | 280 | 305 | 400 | 3500 | 2200 | 350 |
| FZ0 57 V | 200FZ0057DV | 57 | 240 | 265 | 380 | 3500 | 2000 | 300 |
| FZ0 65 V | 200FZ0065DV | 65 | 220 | 240 | 350 | 3500 | 1800 | 300 |
| FZ0 90 V | 200FZ0090DV | 84 | 210 | 230 | 300 | 3500 | 1500 | 300 |
| FZ0 110 V | 200FZ0110DV | 105 | 180 | 200 | 250 | 3000 | 1500 | 300 |
| FZ0 22 V | 200FZ0022DV | 22 | 305 | 330 | 450 | 4000 | 2500 | 450 |
| FZ0 27 V | 200FZ0027DV | 27 | 300 | 325 | 450 | 3500 | 2200 | 350 |
