ÖZELLİKLER VE TEKNİK VERİLER

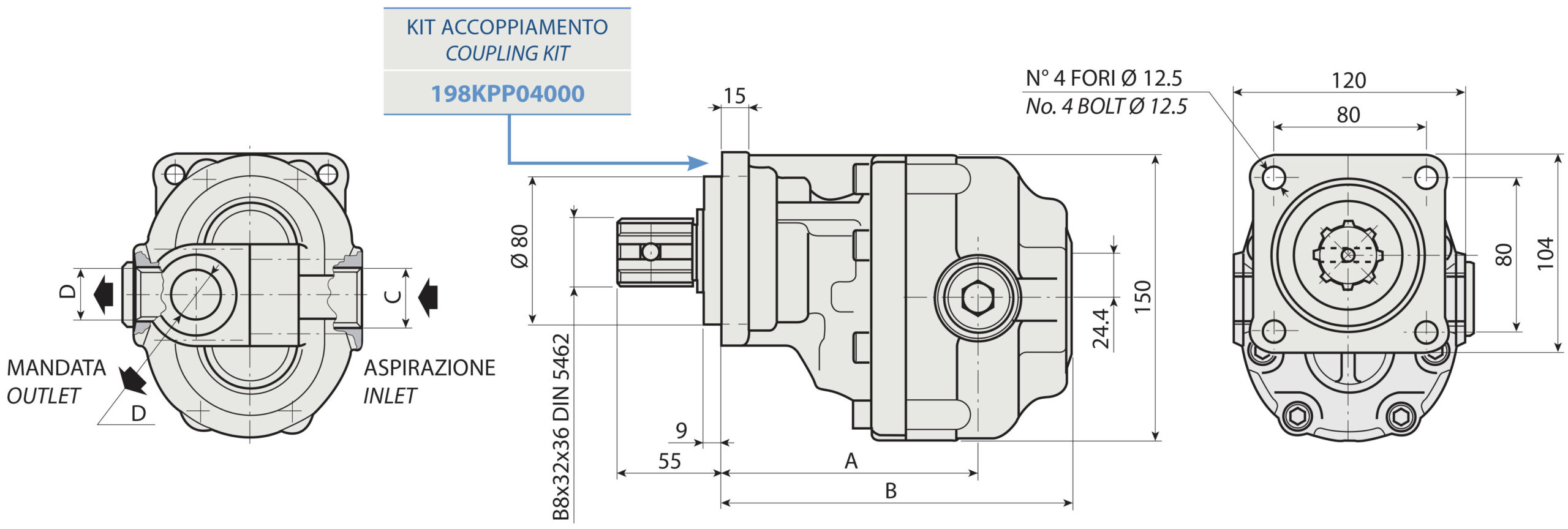

| TÜR | KODU | YER DEĞİŞTİRME cm3 |
A mm |
B mm |
C GİRİŞ | D ÇIKIŞ | AĞIRLIK kg |
| FZ0 15 | 200FZ0015DS | 15 | 123 | 169 | 3/4 | 1/2 | 10,8 |
| FZ0 22 | 200FZ0022DS | 22 | 126 | 174 | 3/4 | 1/2 | 11,3 |
| FZ0 27 | 200FZ0027DS | 27 | 125 | 179 | 3/4 | 1/2 | 11,5 |
| FZ0 36 | 200FZ0036DS | 36 | 128 | 184 | 3/4 | 1/2 | 12 |
| FZ0 43 | 200FZ0043DS | 43 | 131 | 189 | 1 | 3/4 | 12,4 |
| FZ0 57 | 200FZ0057DS | 57 | 138 | 199 | 1 | 3/4 | 13,2 |
| FZ0 65 | 200FZ0065DS | 65 | 143 | 204 | 1 | 3/4 | 13,7 |
| FZ0 90 | 200FZ0090DS | 84 | 152,5 | 219 | 1-1/4 | 1 | 14,7 |
| FZ0 110 | 200FZ0110DS | 105 | 164,5 | 231 | 1-1/4 | 1 | 16,5 |
| TÜR | KODU | YER DEĞİŞTİRME cm3 |
MAKS. SÜREKLİ ÇALIŞMA BASINCI bar |
MAKS ARALIK. ÇALIŞMA BASINCI (MAX 30S) bar | MAKS TEPE BASINCI (P <= 0.1S) bar |
MAKS. ARALIK HIZI (P <= 20 BAR) ve / dak r.p.m. | MAKS. SÜREKLİ HIZ (<= P1) n / dak r.p.m. |
MİN ARALIK HIZI (<= P2X0.5) (MAKS. 30S) n / dak r.p.m. |
| FZ0 15 | 200FZ0015DS | 15 | 315 | 340 | 450 | 4000 | 2500 | 450 |
| FZ0 22 | 200FZ0022DS | 22 | 305 | 330 | 450 | 4000 | 2500 | 450 |
| FZ0 27 | 200FZ0027DS | 27 | 300 | 325 | 450 | 3500 | 2200 | 350 |
| FZ0 36 | 200FZ0036DS | 36 | 300 | 325 | 450 | 3500 | 2200 | 350 |
| FZ0 43 | 200FZ0043DS | 43 | 280 | 305 | 400 | 3500 | 2200 | 350 |
| FZ0 57 | 200FZ0057DS | 57 | 240 | 265 | 380 | 3500 | 2000 | 300 |
| FZ0 65 | 200FZ0065DS | 65 | 220 | 240 | 350 | 3500 | 1800 | 300 |
| FZ0 90 | 200FZ0090DS | 84 | 210 | 230 | 300 | 3500 | 1500 | 300 |
| FZ0 110 | 200FZ0110DS | 105 | 180 | 200 | 250 | 3000 | 1500 | 300 |
