FOX 34-108 DIN 5462 SE

Kategoriler:
Marka:Interpump
Açıklama

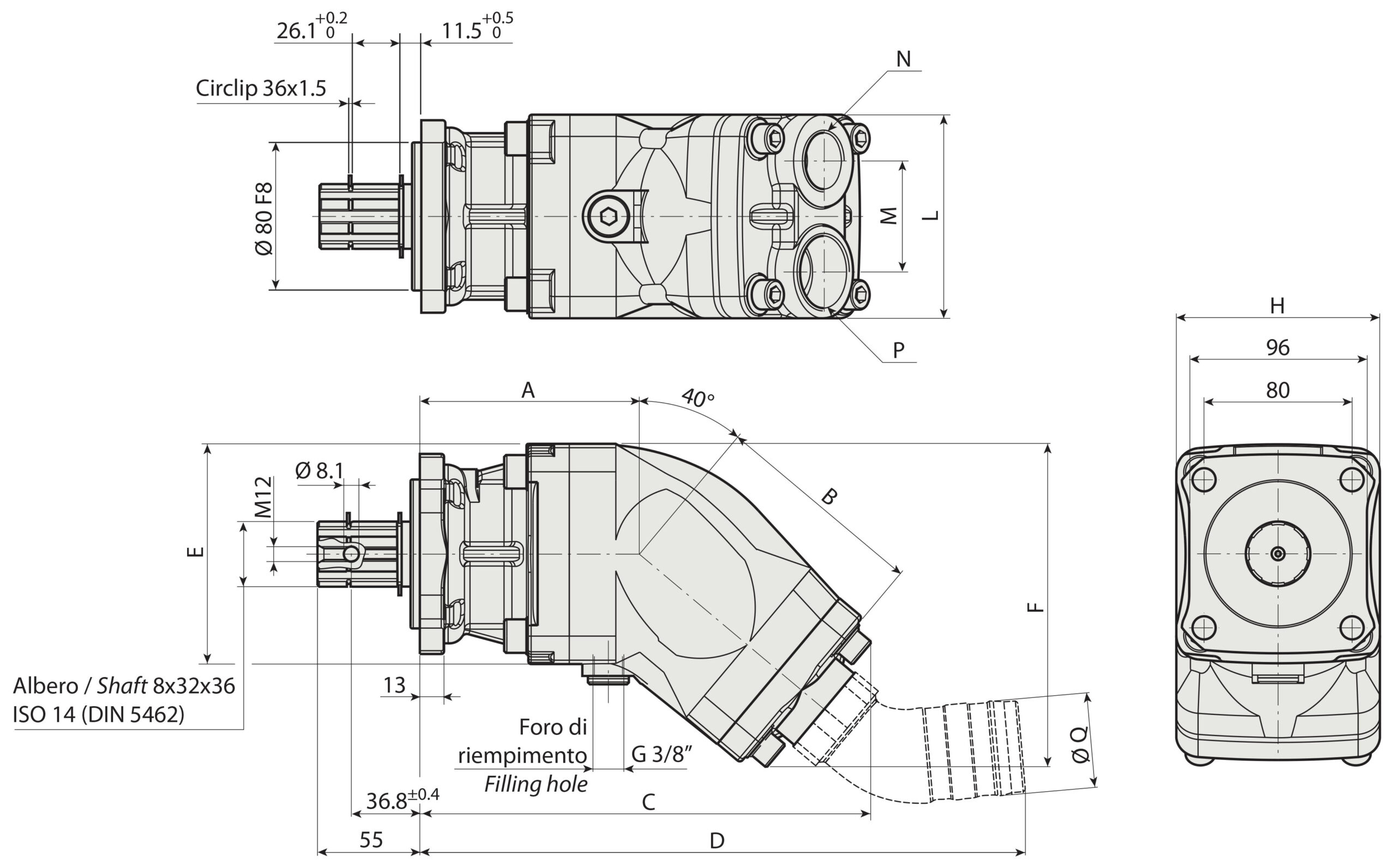

TYPE CODE A B C D E F G H L M OUTLET INLET P INLET Q WEIGHT
mm mm mm mm mm mm mm mm mm mm mm kg
FOX 034 201FX034DSE 109 113 220 308 107 157 107 102 95 46 3.Nis 1 45 10,5
201FX034SSE
FOX 047 201FX047DSE 109 113 220 308 107 157 107 102 95 46 3.Nis 1 45 10,5
201FX047SSE
FOX 064 201FX064DSE 118 128 240 328 118 173 107 110 110 60 1 1.01.2004 51 13,5
201FX064SSE
FOX 084 201FX084DSE 118 128 240 328 118 173 107 110 110 60 1 1.01.2004 51 13,5
201FX084SSE
FOX 108 201FX108DSE 118 128 240 328 118 173 107 110 110 60 1 1.01.2004 51 13,5
201FX108SSE

TYPE
 CODE
 DISPLAC
cm3		 MAX CONTINUOUS OPERATING PRESSURE
bar		 MAX PEAK PRESSURE (P<= 0.1S)
bar		 MAX INTERMITTENT SPEED (P<=20 BAR)
n/min r.p.m.		 MAX CONTINUOUS SPEED (<=P1)
n/min r.p.m.		 MIN INTERMITTENT SPEED (<=P2X0.5) (MAX 30S)
n/min r.p.m.
FOX 034 201FX034DSE

201FX034SSE

 3,60 450 500 3000 2300 300
FOX 047 201FX047DSE

201FX047SSE

 47,39 450 500 2500 1900 300
FOX 064 201FX064DSE

201FX064SSE

 64,08 450 500 2500 1900 300
FOX 084 201FX084DSE

201FX084SSE

 84,83 400 150 2000 1600 300
FOX 108 201FX108DSE

201FX108SSE

 107,70 350 400 2000 1500 300
TYPE CODE INLET PRESSURE (ABSOLUTE) OPERATING VISCOSITY RANGE OPTIMAL VISCOSITY RANGE MAX VISCOSITY AT START-UP FLUID TEMPERATURE
bar cST cST cST °C
FOX 034 201FX034DSE 0,7 ÷ 1,5 9 ÷ 75 15 ÷ 46 1000 -0.3125
201FX034SSE
FOX 047 201FX047DSE 0,7 ÷ 1,5 9 ÷ 75 15 ÷ 46 1000 -0.3125
201FX047SSE
FOX 064 201FX064DSE 0,7 ÷ 1,5 9 ÷ 75 15 ÷ 46 1000 -0.3125
201FX064SSE
FOX 084 201FX084DSE 0,7 ÷ 1,5 9 ÷ 75 15 ÷ 46 1000 -0.3125
201FX084SSE
FOX 108 201FX108DSE 0,7 ÷ 1,5 9 ÷ 75 15 ÷ 46 1000 -0.3125
201FX108SSE
